A Summary of "End-to-End Differentiable Proving"

• atom: An atom consists of a predicate and a list of terms. For example, something like $[\text{isCoprimeWith}, 8, 9]$. More generally, $[R, t_1, t_2, \ldots, t_n]$, where $R$ is an $n$-ary relation called the predicate. In this paper, a term can be either a constant or a variable. The example they use is $[\text{grandfatherOf}, Q, \text{BART}]$, where $\text{grandfatherOf}$ is the predicate, $Q$ is a variable, and $\text{BART}$ is a constant.
• rule: A rule is a structure of the form $H \mathrel{:-} \mathbb{B}$, where $H$ is an atom called the head and $\mathbb{B}$ is a possibly empty conjuction of atoms called the body of the rule. From my understanding, a rule of the form $q \mathrel{:-} [p_1, p_2, \ldots, p_N]$ describes the implication $p_1 \land p_2 \land \ldots \land p_N \rightarrow q$. A rule with no free variables (all the variables are universally quantified) is called a ground rule, and a ground rule with no body is called a fact.
• substitution set: A substitution set is a set of the form $\psi = \{X_1/t_1, \ldots, X_n/t_n\}$, which represents an assignment of free variables $X_1, \ldots, X_n$ to terms $t_1, \ldots, t_n$ respectively. Applying a substitution to an atom replaces all occurrences of variables in the substitution set with their repsective terms.

The algorithm used to prove a statement or to The basic idea of the algorithm is as follows: a function called OR is applied to the query (the goal). It iterates through the set of all rules and finds a unification of the goal with the rule's head (by trying to substitute the variables in either formula to match each other, and by making sure that when both terms are constants that they are equal). If OR is succesful in finding a unification, it calls a function called AND, which then proves all the atoms in the body of that rule (since each rule is an implication based on a conjuction of premises). AND uses the substitution set that was used to unify the goal with the rule head, and applies it to the subgoals (the atoms in the body). It then calls OR on the subgoals one by one to prove them.

As someone with no experience in prolog and this framework of thinking, I found the pseudocode for the backward chaining algorithm a little bit cryptic. Below I transliterate the pseudocode from the appendix of the paper in just plain text (the original had $\LaTeX$):

 or(G, S) = [S' | S' in and(B, unify(H, G, S)) for H :- B in K]

 and(_, FAIL) = FAIL
 and([], S) = S
 and(G : bigG, S) = [S'' | S'' in and(bigG, S') for S' in or(substitute(G, S), S)]

 unify(_,_,FAIL) = FAIL
 unify([],[],S) = S
 unify([],_,_) = FAIL
 unify(_,[],_) = FAIL
 unify(h : H, g : G, S) = unify(H, G, S + {h/g} if h in V,
                                      S + {g/h} if g in V and h not in V,
                                      S         if g = h
                                      FAIL      otherwise)

 substitute([], _) = []
 substitute(g : G, S) = x if g/x in S, g otherwise : substitute(G,S)

The first function, or, is collecting sets S' such that they belong to the result of taking applying and to the bodies, B, of the rule heads, H, that manage to be unified with the goal, G. The and function, when given a set of subgoals, called bigG, and an existing substitution set S, goes through the subgoals one by one and applies or to them after applying the substitution corresponding to S. If or succeeds, it returns a new substitution set S', which can then be used for the remaining subgoals in bigG. If and succesfully goes through all subgoals, it returns a final set of substitution sets that essentially together contain the proof for G. The logic used for unify and substitute is really straightforward, so I won't go into that here. The notational quirk that I was somewhat unware of, is the use of the colon : to denote splitting a list's first element from the rest of the list. This is really quite similar to the way Haskell splits lists, with the notation [x:xs] used to denote the list as a whole but with the first element x and the rest of the list xs accessible as values.

One of the main modifications that NTPs make to the original backward chaining algorithm is that when unifying two atoms, symbol comparison is replaced with a computation that measures the similarity of the vector representations of those two symbols. The example used is the comparison of the predicates grandfatherOf and grandpaOf, which aren't symbolically the same, but which can have very close learned representations, using something like ComplEx. The unify module updates the input substitution set and creates a neural network for comparing vector representations of non-variable symbols in two sequences of terms (i.e. the terms in the two atoms). The module iterates pairwise through the terms of the two atoms being compared, and if one of the symbols is a variable, a substitution is added to the substitution set, and if they are both constants, their vector representations are compared using a Radial Basis Function Kernel.

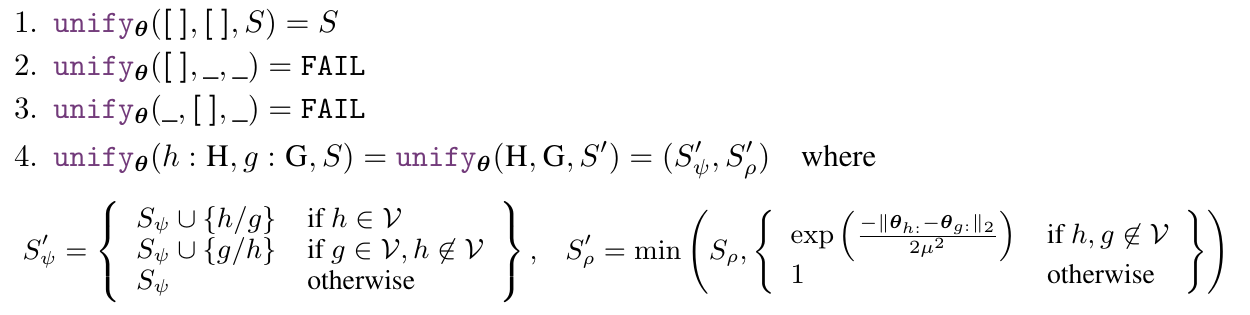

The following is the pseudocode for the unify module taken directly from the paper:

One thing that confused me about this is on line 4, where there seem to be two assignments. My educated guess is that they meant to say that $S' = (S'_{\psi}, S'_{\rho})$, but accidentally ended up writing $\text{unify}_{\theta}(H, G, S') = (S'_{\psi}, S'_{\rho})$, since only the former makes sense as a recursive definition.

Moving on to actually analyzing the code, the two things of significance are the definitions of $S_{\psi}'$ and $S_{\rho}'$. The main pseudocode is very similar to the backward chaining pseudocode from earlier, with a couple of subtle differences. One difference is that there is no pattern match for the case $\text{unify}_{\theta}(\_,\_,\text{FAIL})$, since the final pattern match never results in a call to $\text{unify}_{\theta}$ with $S' = \text{FAIL}$ like it did in the original pseudocode. Another difference is that due to the new structure of $S$, the final case constructs the two different components of $S'$, only one of which was seen in the previous case (namely, $S_{\psi}'$). Another thing to notice is that $S_{\psi}'$ does not result in $\text{FAIL}$ even if neither term is a variable and the terms aren't equal. This is because the $S_{\rho}$ component explicitly contains the calculation of a score for the cases when neither term is a variable, which is the term $$\exp\left(\frac{-||\mathbf{\theta}_{h:} - \mathbf{\theta}_{g:}||_{2}}{2\mu^2}\right)$$

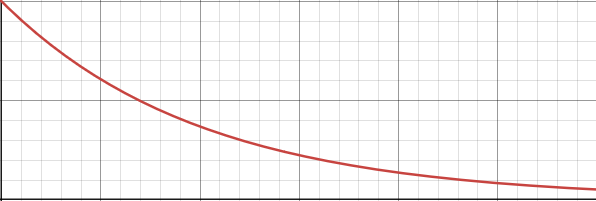

Observe that when $h$ and $g$ are the same, they will have the same vector representation, and thus $\mathbf{\theta}_{g:} = \mathbf{\theta}_{h:}$, which results in $S_{\rho} = e^0 = 1$. The futher apart the vectors $\theta_{g:}$ and $\theta_{h:}$ are (with repsect to the Euclidean metric), the larger the norm of their difference is, which in turn translates to a smaller value of $S_{\rho}'$. In fact, the decay is exponential which means that only really similar vectors get high scores. Note that we are taking the minimum of this new score and the old score, which means that by the end of the algorithm, the remaining value of $S^{(n)}_{\rho}$ will be decided by the pair of terms furthest away from each other in their vector representations.

Another observation pointed out in the paper is that with this new algorithm, the only cases where the $\text{FAIL}$ output can be achieved is when the two atoms don't have the same number of terms (i.e. arity mismatch).

The or module is defined as

The knowledge base, as a set of rules, is denoted by $\mathfrak{K}$. The or module in this case differs from the original symbolic or function in that it takes a new input, $d \in \mathbb{N}$, which defines the maximum proof depth of the neural network, and that it now uses the unify module, defined above, and the and module, defined below. The main difference between the symbolic and the neural or modules is that the neural module can capture similarities between different symbolic terms because it uses the neural unify module.

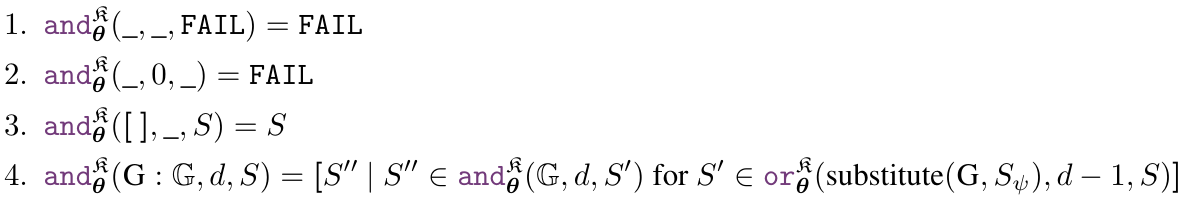

The and module is defined as

The new parameter, $d$, introduces one new case, where we automatically fail if $d = 0$. The main case (line 4) itself is different in that it uses the neural versions of and and or (the substitute function is actually the exact same as before), and makes sure that subsequent calls to or and and get lower proof depths.

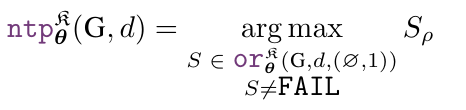

The final aggregate model for proving a goal $G$ using a Knowledge Base $\mathfrak{K}$ with parameters $\mathbf{\theta}$ and proof depth $d$ is given by

The final model takes in two inputs, the goal $G$, and the maximum proof depth, $d$. It then iterates through all the successful solutions produced by $\text{or}_{\mathbf{\theta}}^{\mathfrak{K}}(G,d,(\varnothing, 1))$, and finds the one with the highest $S_{\rho}$ score. The call $or_{\mathbf{\theta}}^{\mathfrak{K}}(G,d,(\varnothing, 1))$ starts by constructing several unify modules, which are then all connected to and modules, which then goes through substitue before going back to or with depth $d - 1$. This continues until there is either a succesful solution, or if $d = 0$ or unification fails, which only happens if arity doesn't match.

The paper uses a negative log-likelihood loss function on the proof success score defined above. This paper also uses corrupted fact triples much in the same way that the paper on NTNs used them for training, with the main difference being that the corrupted data is explicitly given a score of $0$. The labeled training data is the set $\mathcal{T}$. The loss function is given by

$$ \mathcal{L}_{\text{ntp}_{\mathbf{\theta}}^{\mathfrak{K}}} = \sum_{([s,i,j], y) \in \mathcal{T}} -y\log(\text{ntp}_{\mathbf{\theta}}^{\mathfrak{K}}([s,i,j],d)_{\rho}) - (1 - y)\log(1 - \text{ntp}_{\mathbf{\theta}}^{\mathfrak{K}}([s,i,j],d)_{\rho})$$

where $[s, i, j]$ is an atom and $y$ is the labeled proof score, which is $1$ for original ground atoms and $0$ for the corrupted ones that were added in later.
